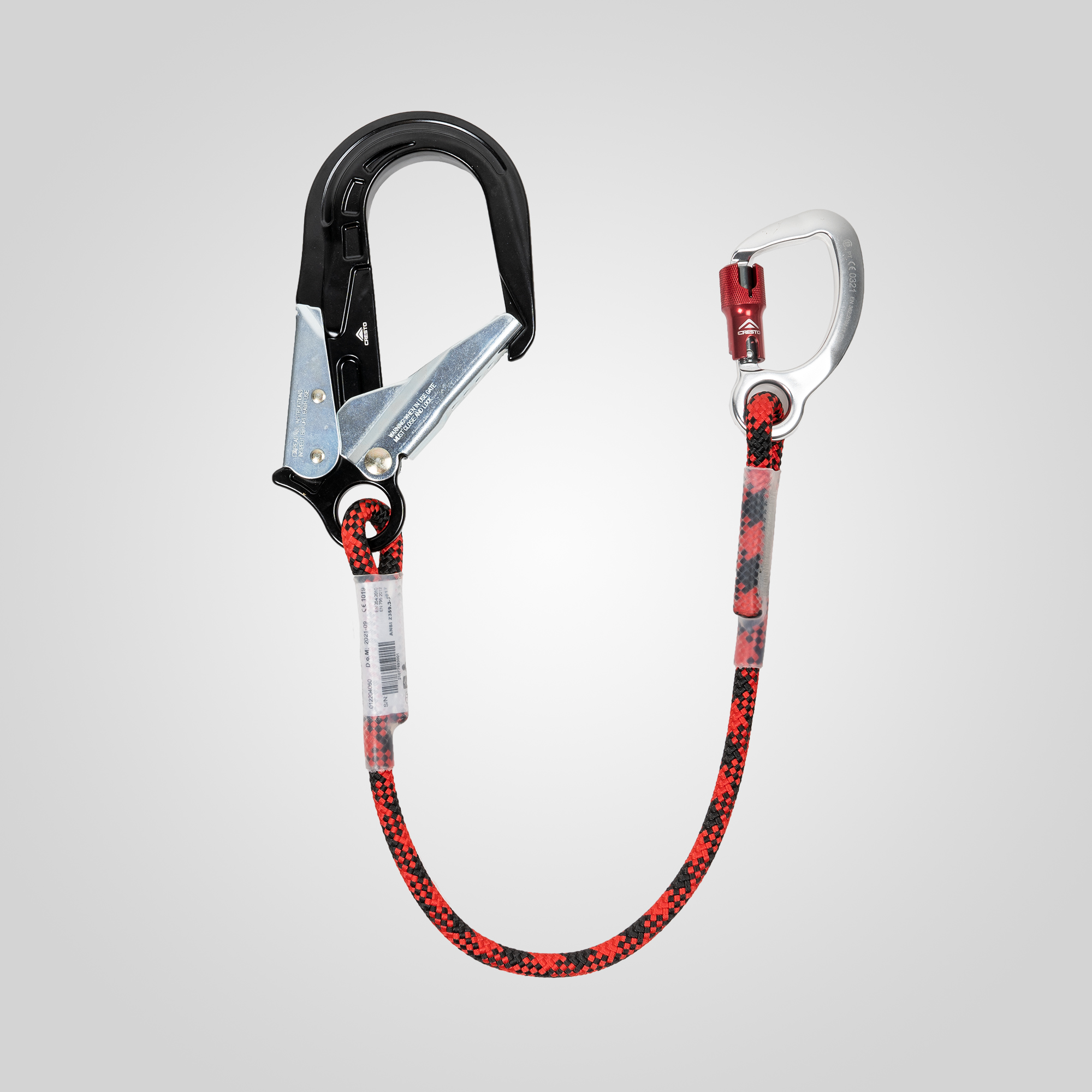

Support lanyard without adjustment.
Stay
Support Lanyard 9654
- ANSI and CE certified without adjustment
- Strong against sharpe edges
Support lanyard without adjustment.
Color
Size
Description
Stay is a support lanyard with materials of the highest quality. The line is certified for 140 kg and approved according to both CE and ANSI.
Segments
- Tower climber
- Offshore
- Wind energy
PRODUCT PROPERTIES |
|
| Attaching connector 1 | ANSI certified trippellock carabiner in aluminum |
| Attaching connector 2 | Big ANSI certified aluminum hook with 64 mm opening |
| Gate strength (kN) | 16.0 |
| Gate opening (mm) | 64.0 |
| Adjustable under load | No |
| Energy absorber | No |
| Fall indicator | No |
| Maximum number of users | 1 |
| Minimum load (kg) | 140.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 25.0 |
| Material | Polyamide |
| Rope | 12 mm kern mantle rope in polyamide by the brand Patron from Teufelberger |
CLASSIFICATION |
|
| EN-standard | EN 354 : 2010, EN 795 : 2012 |
| Notified body | 1019, VVUU, a.S., Pikartaske 1337/7 716 07 Ostrava - Radvanice Czech Republic |
| Other standards | ANSI Z359.4-2013 |
ANNUAL INSPECTION |
|
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Czech (CS), Danish (DA), Dutch (NL), English (EN), Estonian (ET), Finnish (FI), French (FR), German (DE), Norwegian (NO), Slovak (SK), Slovenian (SL), Spanish (ES), Swedish (SV) |
| 012204060 | CRESTO, STAY 9654 1,0 M |
| 012204062 | Cresto, Stay 9654 1,2 m |
| Product sheet | Stay |
| Declaration of Conformity | STAY - EU 20210430 |
