The Shuttle carriage from Eyecatcher makes it possible to move freely along a fixed wire system, it even moves unhindered over Eyecatcher's intermediate and corner brackets.
Shuttle
Carriage for wire system
- Approved for areas with explosive atmosphere
- One user per carriage
The Shuttle carriage from Eyecatcher makes it possible to move freely along a fixed wire system, it even moves unhindered over Eyecatcher's intermediate and corner brackets.
Color
Description

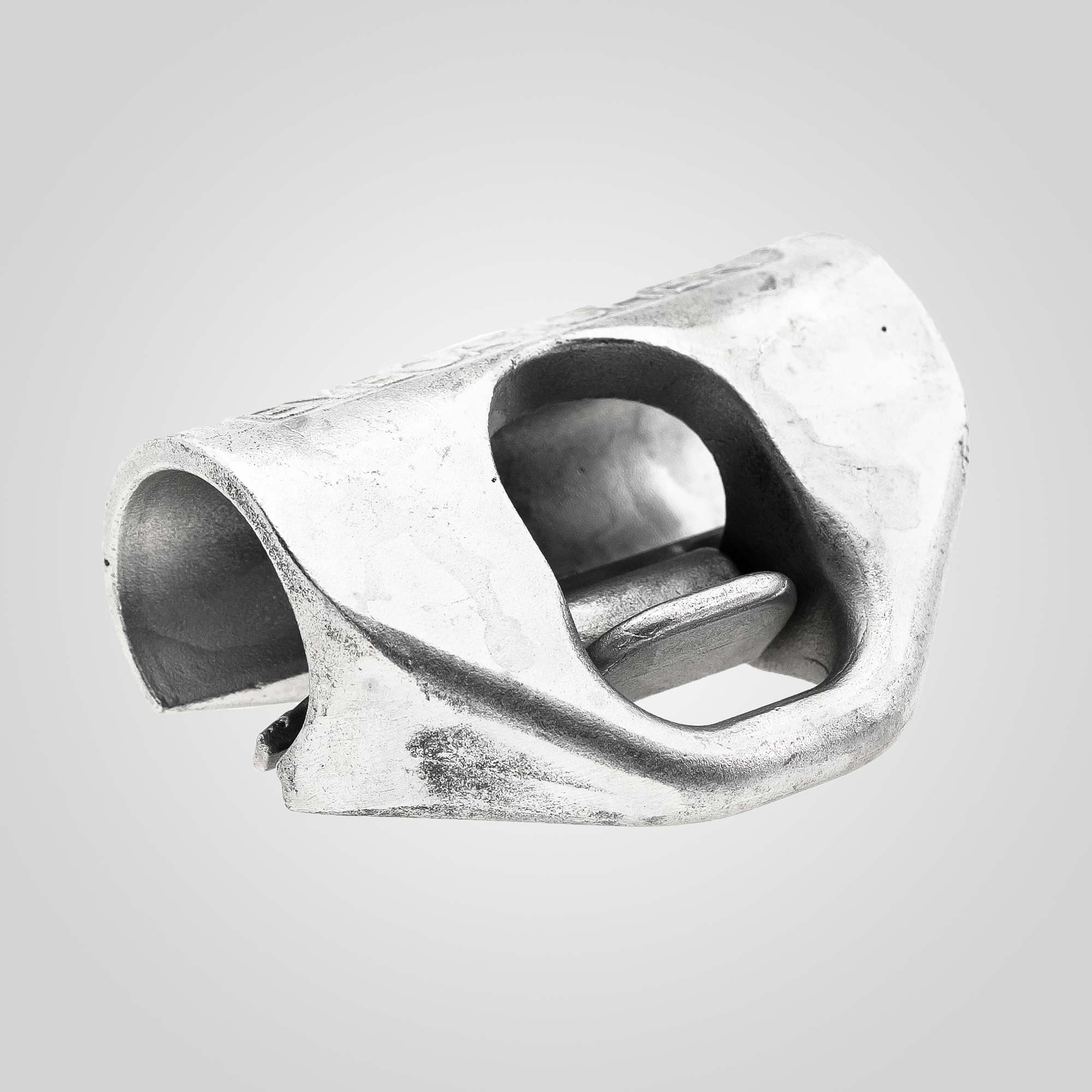

Shuttle is a carriage from Eyecatcher that fits wire systems. The carriage is made of stainless steel and the locking mechanism holds the carriage in place on the wire. Shuttle is approved for explosive environments and passes Eyecatcher's intermediate and corner mounts without problems.
Note that a 10 mm carabiner is not included. The carabiner is needed to be able to connect to the carriage.
Segments
- General industry
- Tower climber
- Telecom
- Wind energy
PRODUCT PROPERTIES |
|
| Product includes | Carriage |
| Energy absorber | No |
| Maximum number of users | 1 |
| Maximum load (kg) | 100.0 |
| Material | Stainless steel |
CLASSIFICATION |
|
| PPE-category | Category 1 |
| EN-standard | EN 795 : 2012 |
| Notified body | 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany |
ANNUAL INSPECTION |
|
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | No |
DOCUMENTS |
|
| Declaration of Conformity | No |
| Manual languages | English (EN) |
| 012296167 | Eyecatcher, Shuttle EC-ST-G, carriage for wire |
| Product sheet | Shuttle |
| Product Sheet | Eyecatcher Shuttle - technical specification |
