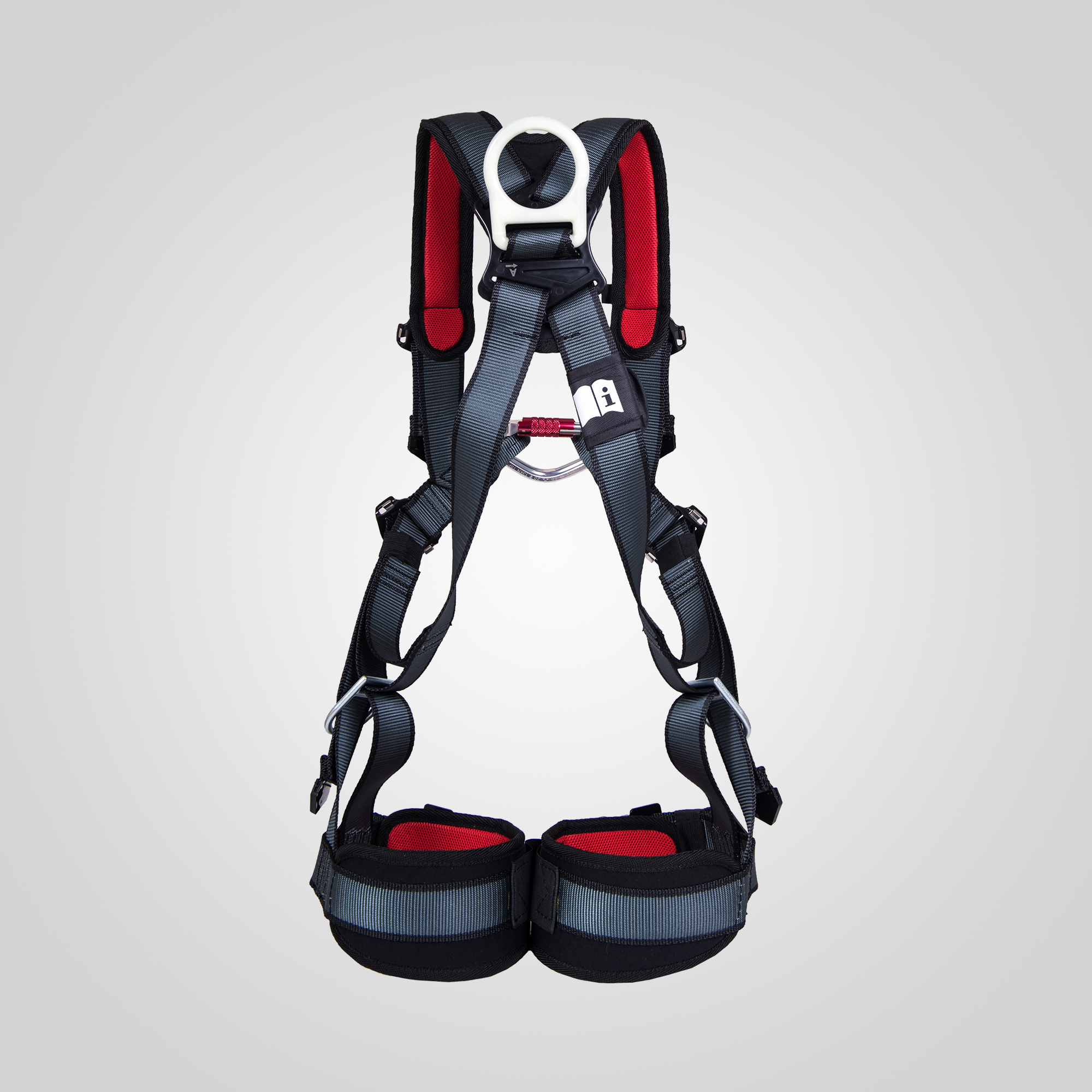

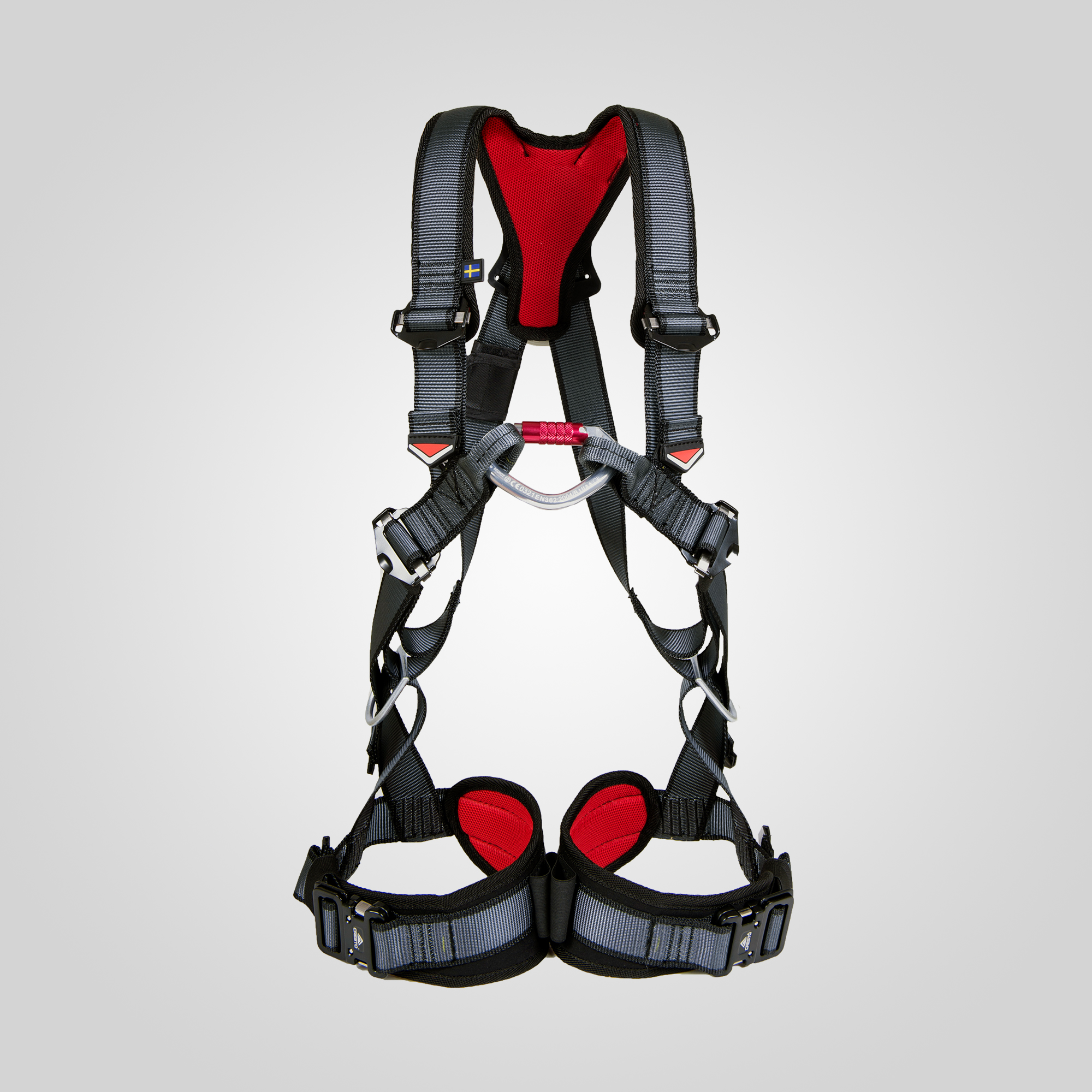

Fusion Active is a slim premium harness, developed for maximum comfort and simplicity of use.
Fusion Active
Harness 1118
- Approved for work positioning
- Backpadding in breathable material
- Easy-use adjustment buckles on legs and shoulders
Fusion Active is a slim premium harness, developed for maximum comfort and simplicity of use.
Color
Size
Description
Fusion Active is designed to fit most work environments where the user does not want to feel restricted in their work. The harness is flexible and adjustable to give the user the best comfort when working at heights.
What makes Fusion Active unique is that it's approved for support and positioning even though it has no support belt.
Segments
- Pitch roof work
- General industry
- MEWPs
- Scaffolding
PRODUCT PROPERTIES |
|
| Front A-point | Triangle shaped carabiner (carabiner 9656) in textile loops |
| Chest buckles | Triangle shaped carabiner of aluminum (carabiner 9656) |
| Back A-point | Plastic overmoeld steel ring self luminous PVC 53 mm |
| Side D-rings | Galvanized steel 50 mm >30kN for positioning |
| Side adjuster | Heat treated steel saltspray tested 74 hours >18kN |
| Leg buckles | Quickbuckles in steel with stainless components Strength >20kN |
| Padding material | Breathable 3-D mesh |
| Adjustable under load | Yes |
| Fall indicator | No |
| Maximum number of users | 1 |
| Maximum load (kg) | 140.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 15.0 |
| Material | Polyester Nordguard ™ |
| Extra functions | Support belt function without support belt |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 361 : 2004, CNB/P11.043 Rev2 |
| Notified body | 1019, VVUU, a.S., Pikartska 1337/7 716 07 Ostrava - Radvanice Czech Republic |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 + 2 years. Product lifecycle 10 years + 2 years stock keeping |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Czech (CS), Danish (DA), Dutch (NL), English (EN), Estonian (ET), Finnish (FI), French (FR), German (DE), Greek (EL), Italian (IT), Norwegian (NO), Slovak (SK), Spanish (ES), Swedish (SV) |
| 012200081 | Cresto, Fusion Active, S/M |
| 012200083 | Cresto, Fusion Active, S/M long |
| 012200085 | Cresto, Fusion Active, L/XL |
| 012200087 | Cresto, Fusion Active, XXL |
| Product sheet | Fusion Active |
| User manual | Fusion Active, Fusion Pro, Fusion Pro+ - version 2 |
| Size guide | Size guide - Fusion harnesses |
| Declaration of Conformity | Fusion Activ EU 20220429 |
