A SRL with webbing and aluminum housing with built-in absorber. Complement the device with top carabiner 012250064 CT, Pillar Steel SG.
Flexible HWB
Self retractable lanyard
- Aluminum housing
- Approved for 136 kg
- Vertical and horisontal use
A SRL with webbing and aluminum housing with built-in absorber. Complement the device with top carabiner 012250064 CT, Pillar Steel SG.
Color
Size
Description

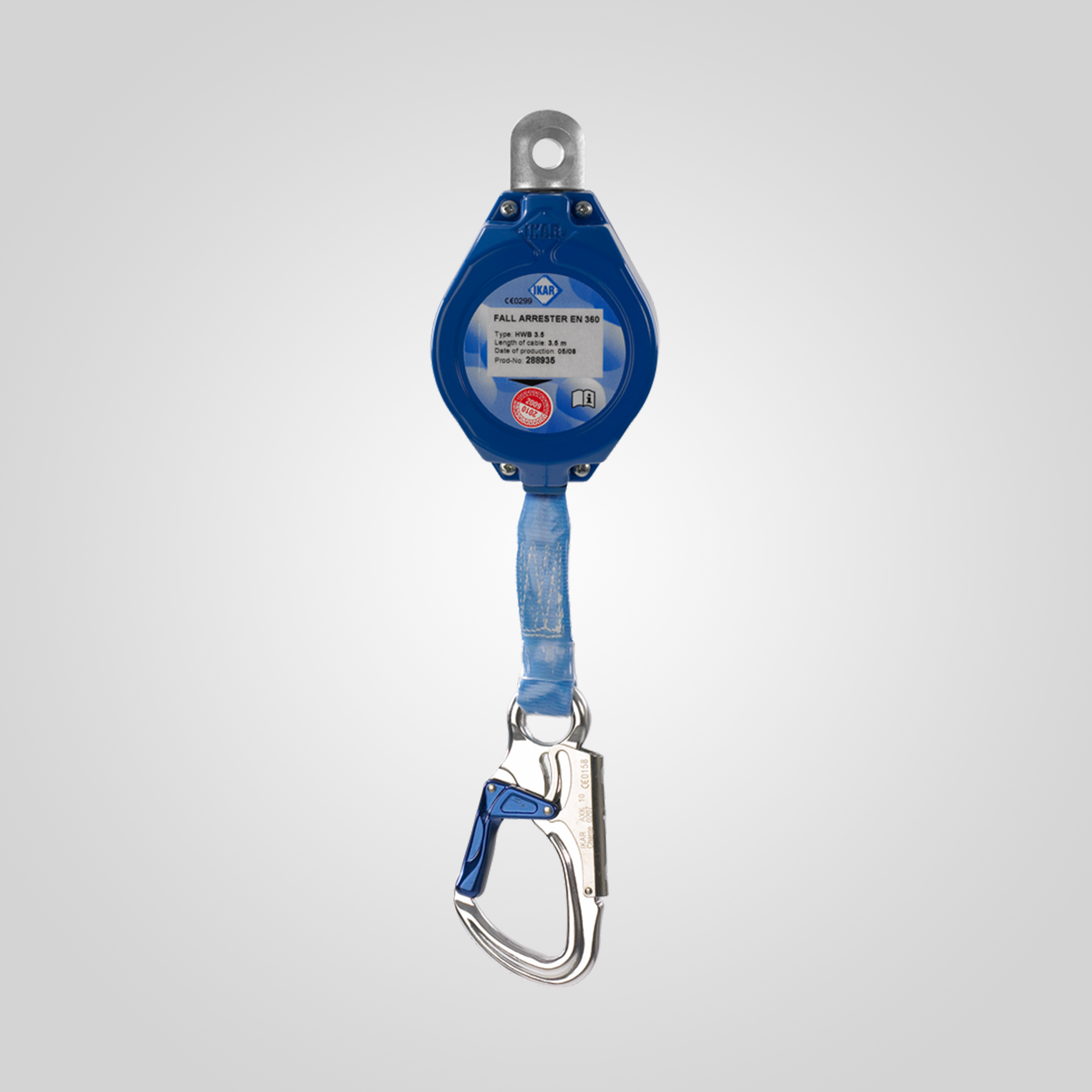

Flexible HWB is a self retractable lanyard (SRL) with webbing and aluminum housing. The connection point is rotating and the SRL is approved for both horizontal and vertical use. The fall arrester is built into the house, which makes the equipment minimal and easy to use. The equipment mange a maximum weight of 136 kg.
Segments
- Pitch roof work
- General industry
- Tower climber
- MEWPs
- Offshore
- Confined space
- Scaffolding
- Rope access
- Telecom
- Wind energy
PRODUCT PROPERTIES |
|
| Product includes | One self retractable lanyard, complement with top carabiner 012250064 CT, Pillar Steel SG. |
| Adjustable under load | No |
| Energy absorber | Yes |
| Fall indicator | Yes |
| Maximum number of users | 1 |
| Maximum load (kg) | 136.0 |
| Minimum working temperature (c) | -30.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 22.0 |
| Material | Polyamide, Aluminum |
| Rope | Webbing |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 360 : 2002, CNB/P11.060 Type A |
| Notified body | 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 years |
| Warranty | 2 year |
| Identification | Serial number |
| RFID | No |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Danish (DA), German (DE), English (EN), Spanish (ES), Finnish (FI), French (FR), Hungarian (HU), Italian (IT), Dutch (NL), Norwegian (NO), Polish (PL), Portuguese (PT), Romanian (RO), Slovenian (SL), Swedish (SV) |
| 012211001 | IKAR, FLEXIBLE HWB, 2M, WEB, ALUMINUM HOUSING |
| 541-HWB2 | IKAR, Flexible HWB, 2m, ANSI certificate |
| 012211011 | IKAR, FLEXIBLE HWB, 3.5M, WEB, ALUMINUM HOUSING |
| Product sheet | Flexible HWB |
| Declaration of Conformity | IKAR Flexible HWB2 - EC 20170223 |
| Declaration of Conformity | IKAR Flexible HWB3.5 - EC 20170223 |
| User manual | IKAR HWB |
