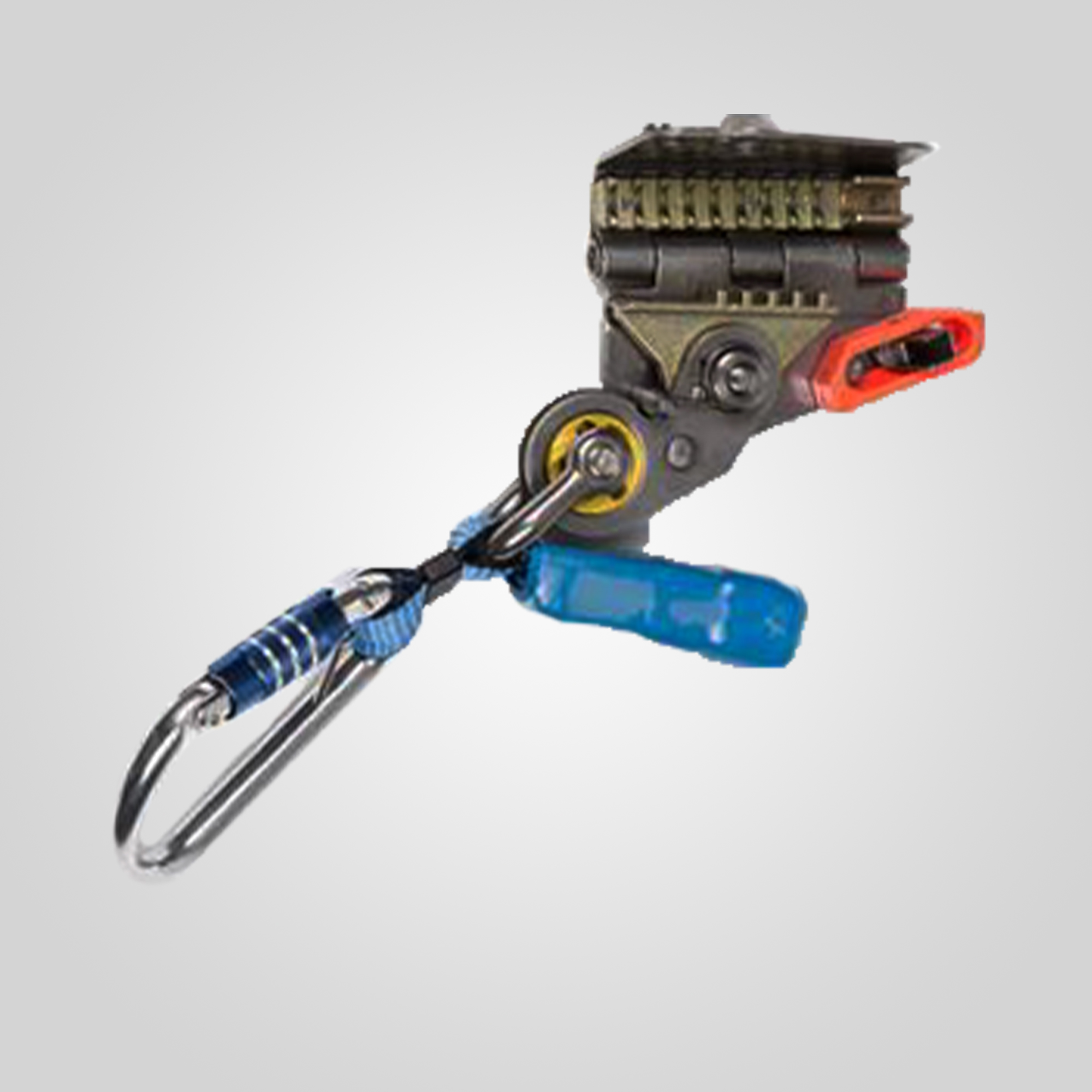

Carriage AH5 for Mittelman's vertical wire system.
Fall Arrester AH5
Carriage for wire systems
- Detachable
- Max. 130 kg
Carriage AH5 for Mittelman's vertical wire system.
Color
Description
Fall arrest AH5 is a carriage with absorber from Mittelmann that fits into their own vertical wire system. The carriage is detachable for easy attachment to the wire and has a maximum user weight of 130 kg.
Segments
- General industry
- Tower climber
- Wind energy
PRODUCT PROPERTIES |
|
| Energy absorber | Yes |
| Fall indicator | Yes |
| Minimum load (kg) | 50.0 |
| Maximum load (kg) | 130.0 |
| Minimum working temperature (c) | -40.0 |
| Material | Polyester, Galvanized steel, Brass, Stainless steel, Aluminum |
CLASSIFICATION |
|
| EN-standard | EN 353-1 : 2014, EN 795 : 2012 |
| Notified body | 0158, DEKRA Testing and Certification, Dinnendalhlstr 9, DE-44809 Bochum, Germany |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 years |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | No |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | German (DE), English (EN), Spanish (ES) |
| 012265120 | Mittelmann, Fall Arrester AH5, carriage |
| Product sheet | Fall Arrester AH5 |
| Declaration of Conformity | Fall arrester AH5 - EU 20180609 |
| User manual | Fall arrester AH5 - version 1 |
