Discharged and replaced with-012203201 Energy Single-Flex is a single fall arrest lanyard with flexible webbing and only one hook.
Energy Single-Flex H 100Kg
Fall arrest lanyard 1301-F
- CE certified hook
- Approved for 100 kg
- Elastic webbing
Discharged and replaced with-012203201 Energy Single-Flex is a single fall arrest lanyard with flexible webbing and only one hook.
Color
Size
Description

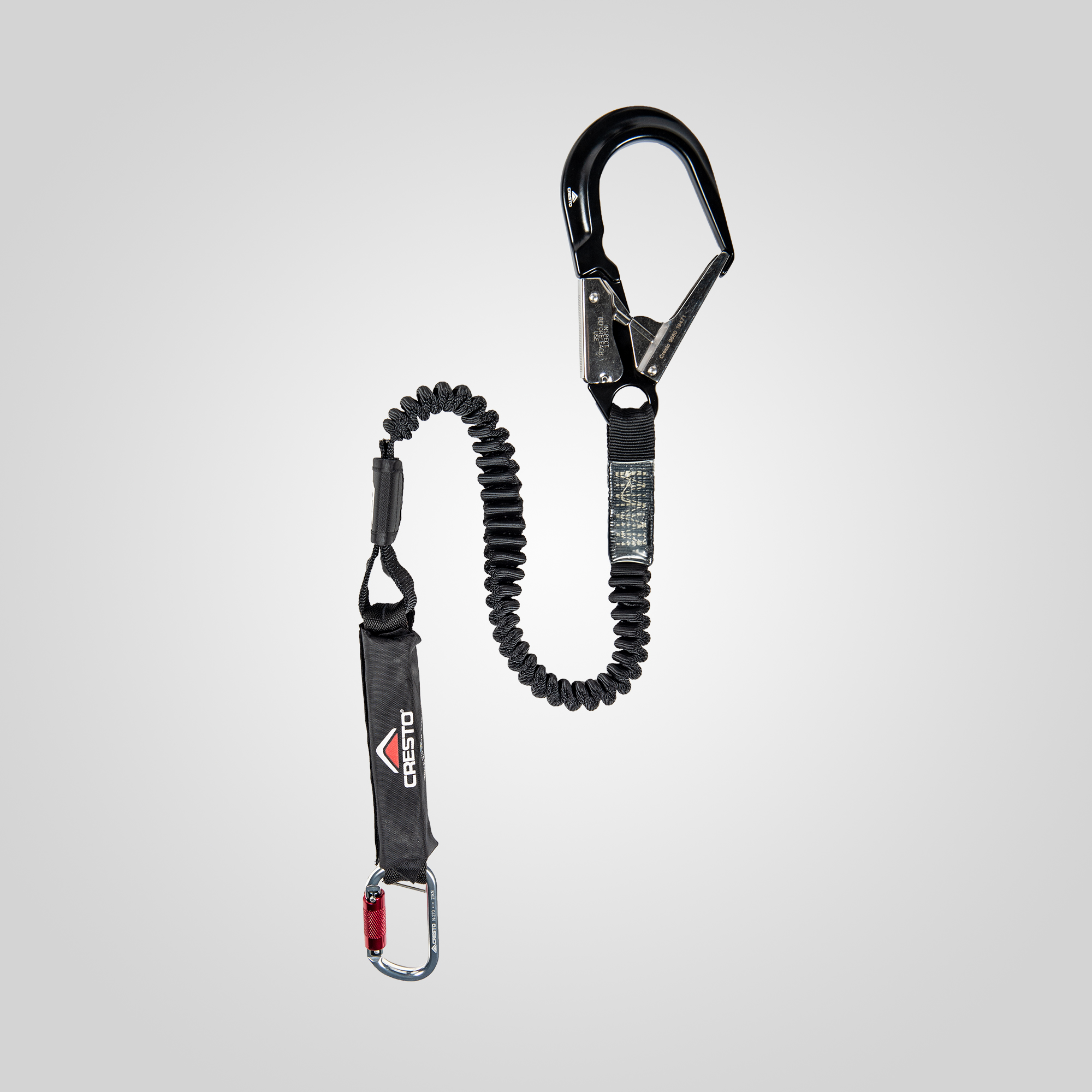

A single fall arrest lanyard provides secure protection when working on skylifts and scaffolding.
Energy Single-Flex has the same functions as Energy Twin-Flex except that it has only one webbing and one hook instead of two. Energy Single-Flex is manufactured as a flexible tube with internal elasticity, which allows you to stretch the line to a maximum length of 1.9 meters. At the beginning of the rope there is an external absorber mounted which is released in case of a fall and catches you. The cover on the absorber can easily be replaced if it becomes dirty or damaged to ensure that the rope underneath is protected in the best way.
Segments
- General industry
- MEWPs
- Scaffolding
PRODUCT PROPERTIES |
|
| Attaching connector 1 | Oval twist lock carabiner in aluminum, mounted with captive pin |
| Attaching connector 2 | Big aluminum hook with 63 mm opening |
| Energy absorber | Yes |
| Fall indicator | Yes |
| Mechanics | Tear-webbing absorber |
| Maximum number of users | 1 |
| Maximum load (kg) | 100.0 |
| Minimum working temperature (c) | -40.0 |
| Maximum working temperature (c) | 100.0 |
| Minimum breaking strength - MBS (kN) | 15.0 |
| Material | Polyamide |
CLASSIFICATION |
|
| PPE-category | Category 3 |
| EN-standard | EN 355 : 2002 |
| Notified body | 1019, VVUU, a.S., Pikartska 1337/7 716 07 Ostrava - Radvanice Czech Republic |
ANNUAL INSPECTION |
|
| Annual inspection | Yes, every 12 months |
| Life span | 10 + 2 years. Product lifecycle 10 years + 2 years stock keeping |
| Warranty | 2+1 year when registered in Inspector |
| Identification | Serial number |
| RFID | Yes |
DOCUMENTS |
|
| Declaration of Conformity | Yes |
| Manual languages | Danish (DA), English (EN), Finnish (FI), French (FR), German (DE), Greek (EL), Norwegian (NO), Slovak (SK), Spanish (ES), Swedish (SV) |
| 012203006 | Cresto, Energy Single-Flex H, 1.9m ¤ |
| Product sheet | Energy Single-Flex H 100Kg |
| Declaration of Conformity | Energy Single-Flex - EU 20190402 |
| User manual | Manual Cresto Fall Arrest Lanyard / Lanyard |
